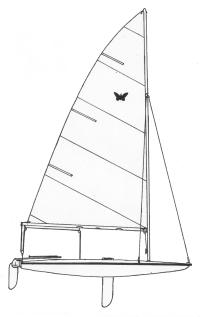

Butterfly Specifications







Hull
Scow design
Length
12'2" to extensions of rub rail
11'11" LOA exclusive of rub rail
Beam
54"
Hull Depth
15"
Hull Weight
135 lbs/61 kg
Crew Capacity
600 lbs/273 kg
Sail Area
75 sq ft
Mast Length
18', breaks into 2-9' sections for travel/storage
Nominal Draft
26"
Designer
John Barnett
Year First Built
1961
Number of Boats Built
10,750
Builder
After a quarter-century of building Butterflys, Hedlund Marine of Wilmette Illinois has sold the Barnett business, including the Butterfly and the Barnett 1400, to another midwestern boat builder with Scow experience. As soon as the legal details are settled, expected in early Winter 2006-7, the new builder will be introduced here. For 2007, all dealers will remain the same, and prices will be fixed at the 2005-6 levels at least in to spring.
